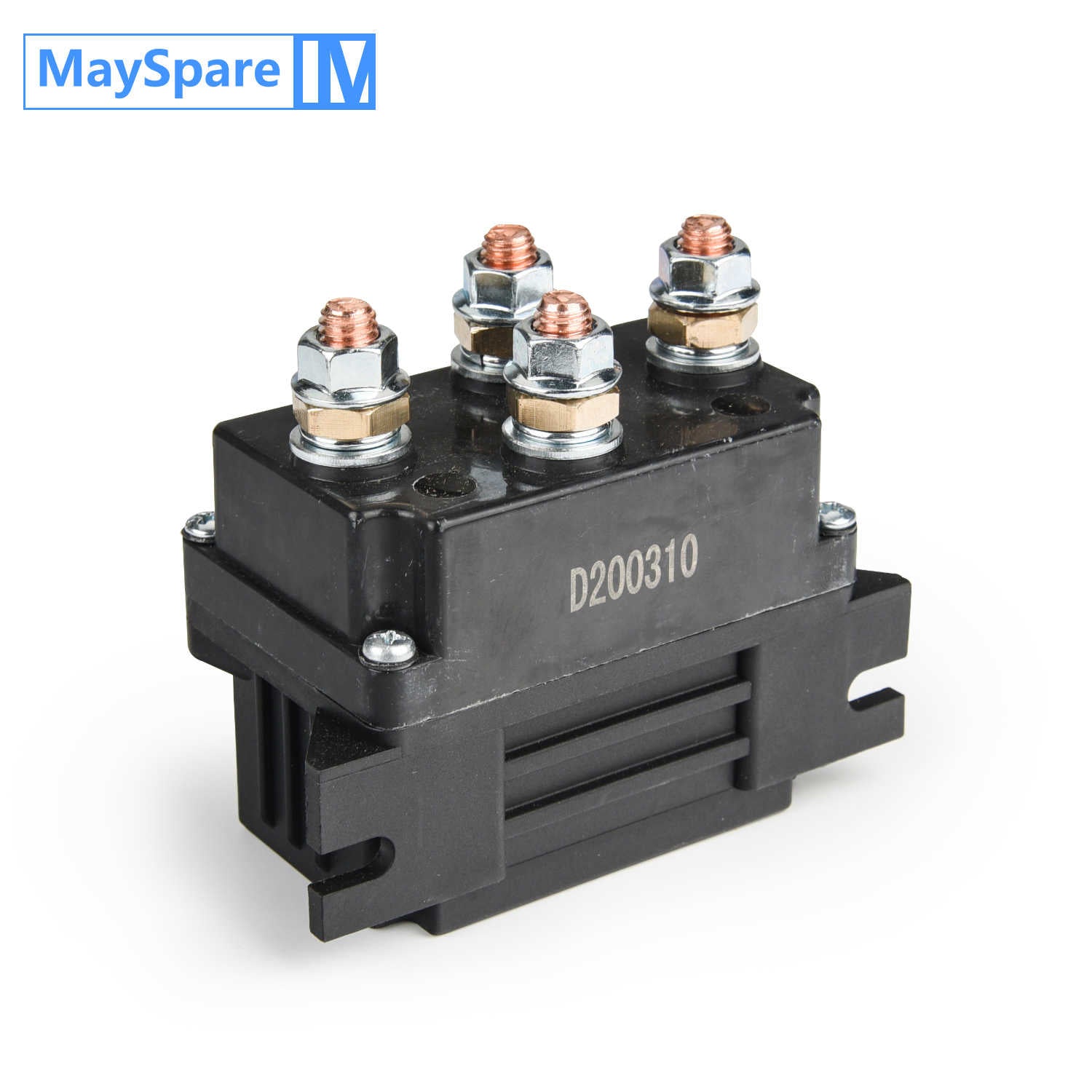

12V 500A Winch Solenoid Relay for 8000 15000lb ATV UTV Winch Control

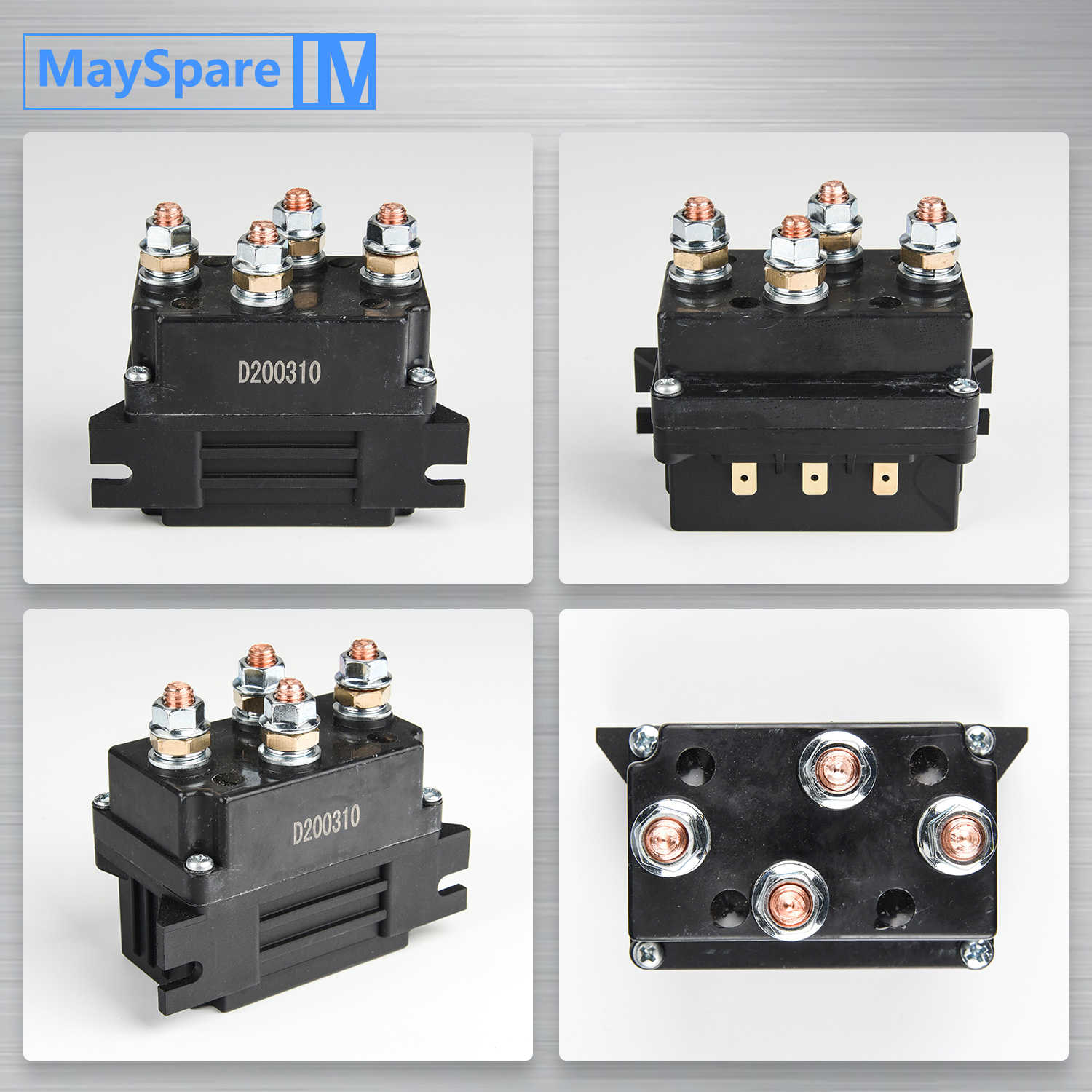

winch solenoid relay can be used in Winch Motors Snow Plow Spreader Motors Windlasses Hydraulic Pump Motors Other Reversible Motors
winch solenoid relay Compatible with 8000lb 12000lb winch including ATV UTV SUV Jeep vehicles and 12V Trailer lift jack

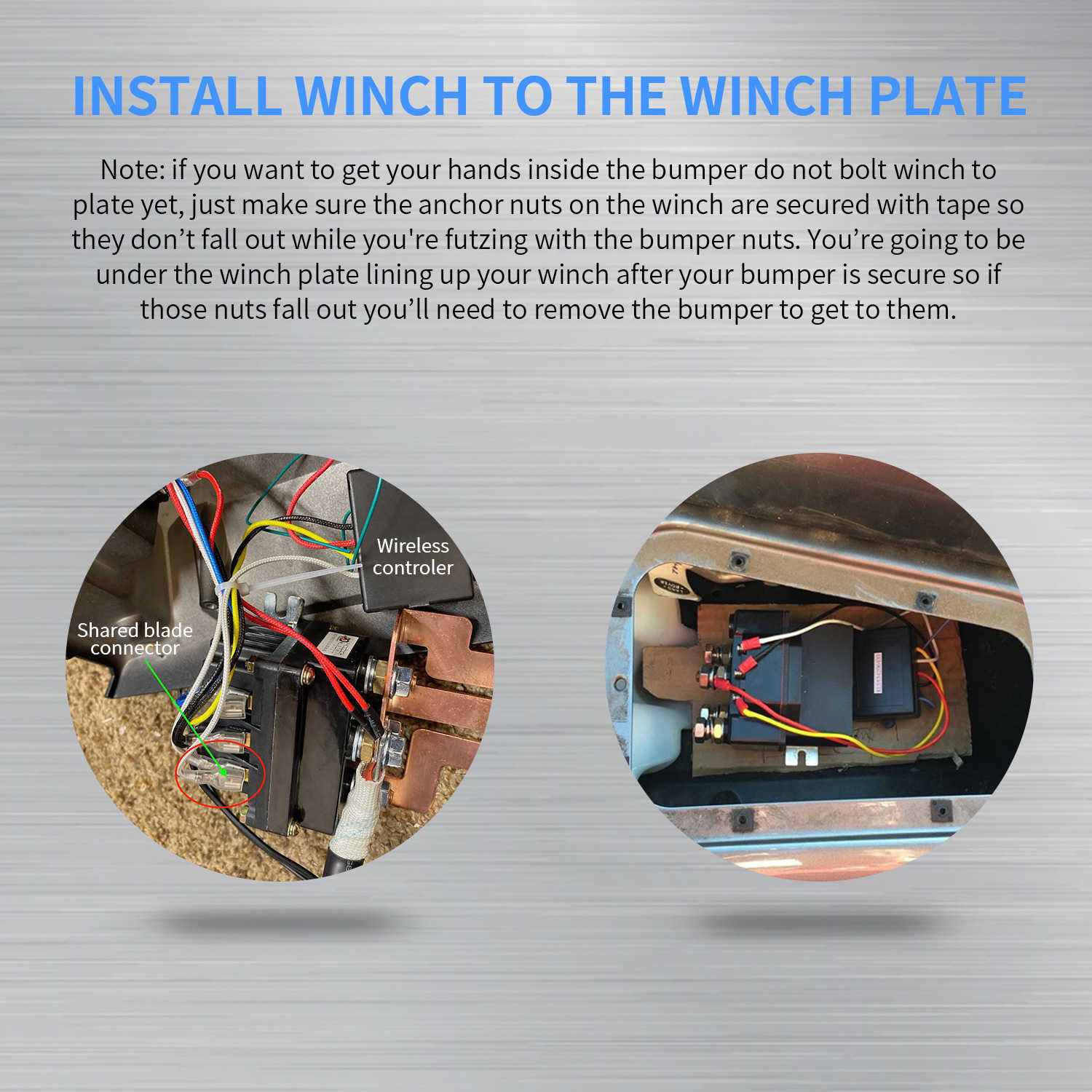

install winch to the winch plate

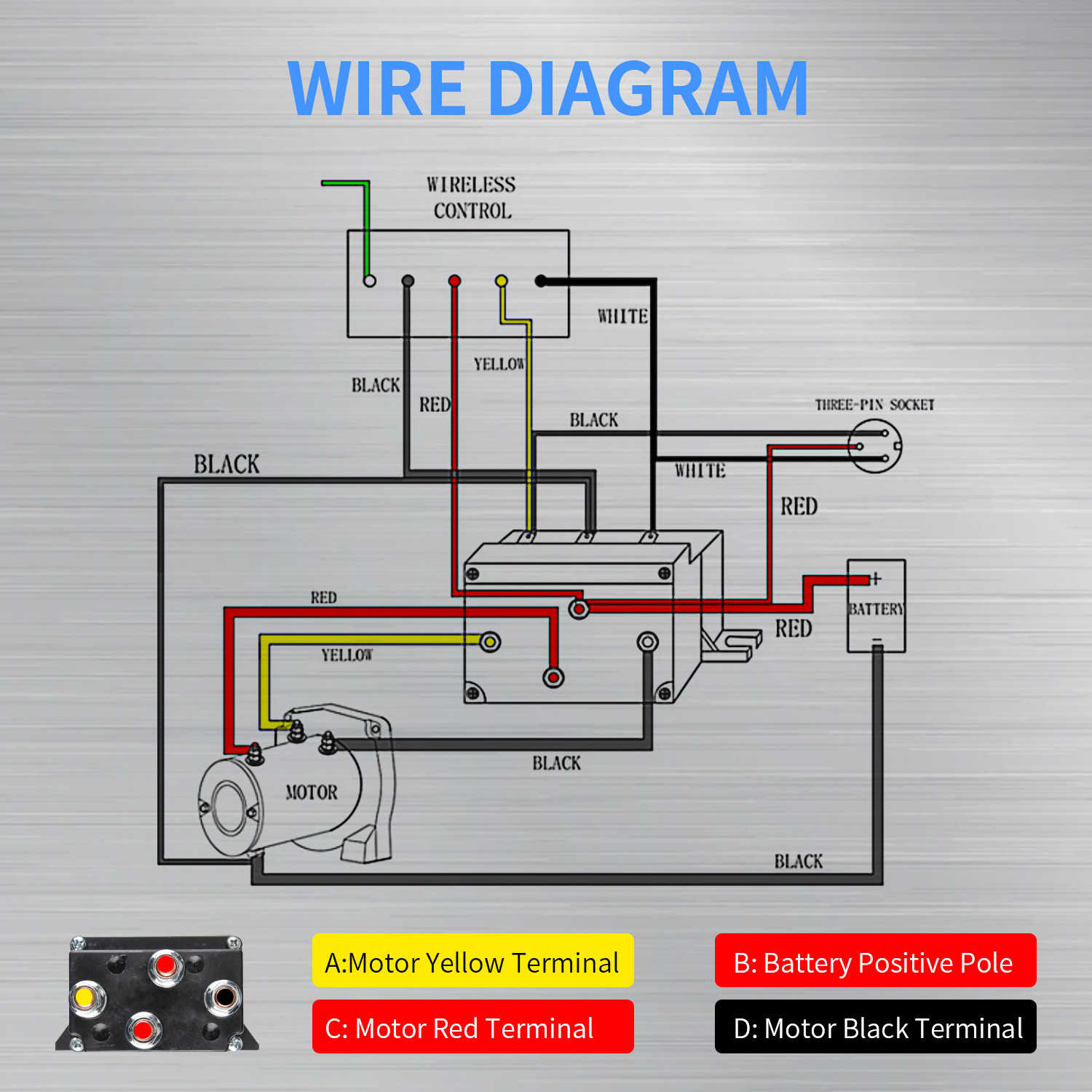

12v 500A winch solenoid relay wire diagram
12V 500A Winch Solenoid Relay for 8000 15000lb ATV UTV Winch Control
winch solenoid relay can be used in Winch Motors Snow Plow Spreader Motors Windlasses Hydraulic Pump Motors Other Reversible Motors
winch solenoid relay Compatible with 8000lb 12000lb winch including ATV UTV SUV Jeep vehicles and 12V Trailer lift jack
install winch to the winch plate
12v 500A winch solenoid relay wire diagram

12V 500A Winch Solenoid Relay for 8000-15000lb ATV UTV Winch Control

SKU: ZJSF-41E-12V
Availability: In Stock
$36.80
$36.80
Subtotal: $36.80
Ask An Expert
10 customers are viewing this product
  • mayspare
Free Shipping

Worldwide Free Shipping (Ordinary Delivery)

Orders over 500$ Fast Express Free

Description
Description
x

Concerning this item

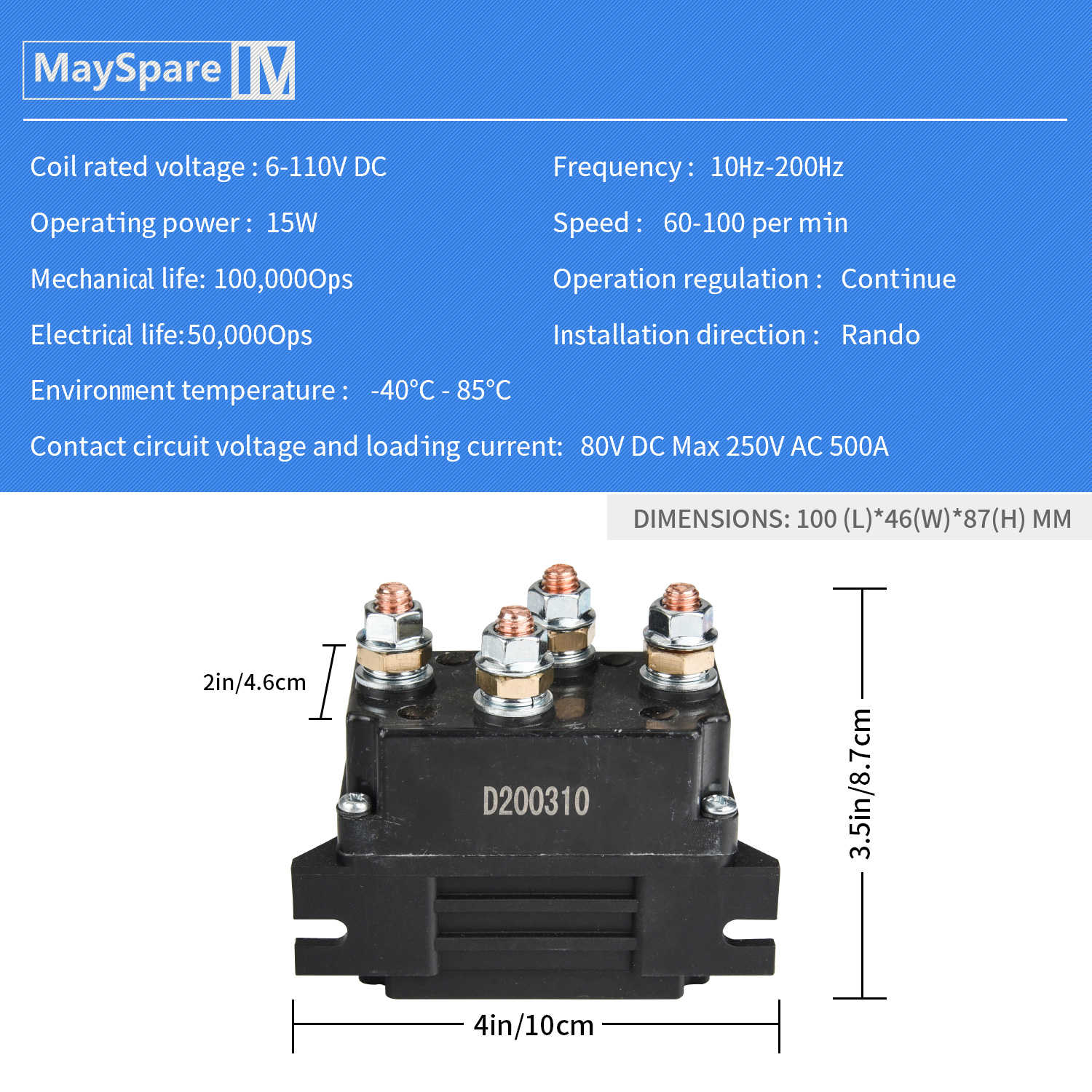

  • Voltage: 12V
  • Running power: 15w
  • Max. coil voltage: 6 to 100V DC
  • Load current: 500A
  • Capacity:8000-15000lb
  • Dimension:3.9x2.3x3.1inch
  • Mechanical life: 100,000
  • Electrical life: 10,000
  • Type of Contact: 2NC 2NO
  • Quality: the silver plated 4 terminals, and a hinge winch, that’s made of steel, hence solid and resistant to weather elements.
  • Lifetime Warranty: entire high-quality, & OEM compatibility, with full refund and free return, and direct replacement.

Product Description

Application

  • Hydraulic pump, spreader and snow plow motors, winch motors, and more reversible motors.
  • Compatible with a wide range of winches, from 8000lb to 12000lb models. It can be used with various types of vehicles, including all-terrain vehicles (ATVs), utility terrain vehicles (UTVs), sport utility vehicles (SUVs), Jeeps, four-wheel drive (4x4) vehicles, as well as 12V trailers. Additionally, it is also compatible with lifting jacks and other related equipment.

Easy Installation

  • The installation manual offers versatility in the installation process.
  • For ease of installation in the control box, there is a pre-cut installation bracket.
  • Required tools include: #2 Robertson screwdriver, 10mm wrench, wire strippers, soldering iron or torch, electronic solder, blade connectors, and heat shrink tubing.

Characteristic

Winch Motor Control and Relay Operation

  • It reverses based on the position of the balanced bridge on the winch motor and the control switch.
  • The Winch Relay is an instantaneous center-off single-pole double-throw (SPDT) device capable of managing peak currents up to 250 amps for durations not exceeding 10 seconds. It requires a 20-30 second cooldown period before it can be used again.

Waterproof and Durable Design for Extreme Conditions

  • Featuring a thermoplastic shell with a black powder coating, this product offers exceptional durability, allowing you to tackle any water conditions with confidence.

High Quality Materials and Long Service Life

  • All mounts undergo metal plating prior to being coated.& 180℃ Copper Wire as Coil Reduce the Power Loss, Longer the Using
    • Life，Avoid corrosion
  • Life Expectancy Electrical: 10,000 times Operations
