12V Continuous Duty Solenoid Relay Battery Isolator
12V Continuous Duty Solenoid Relay Multi angle display
12v battery isolator specification table

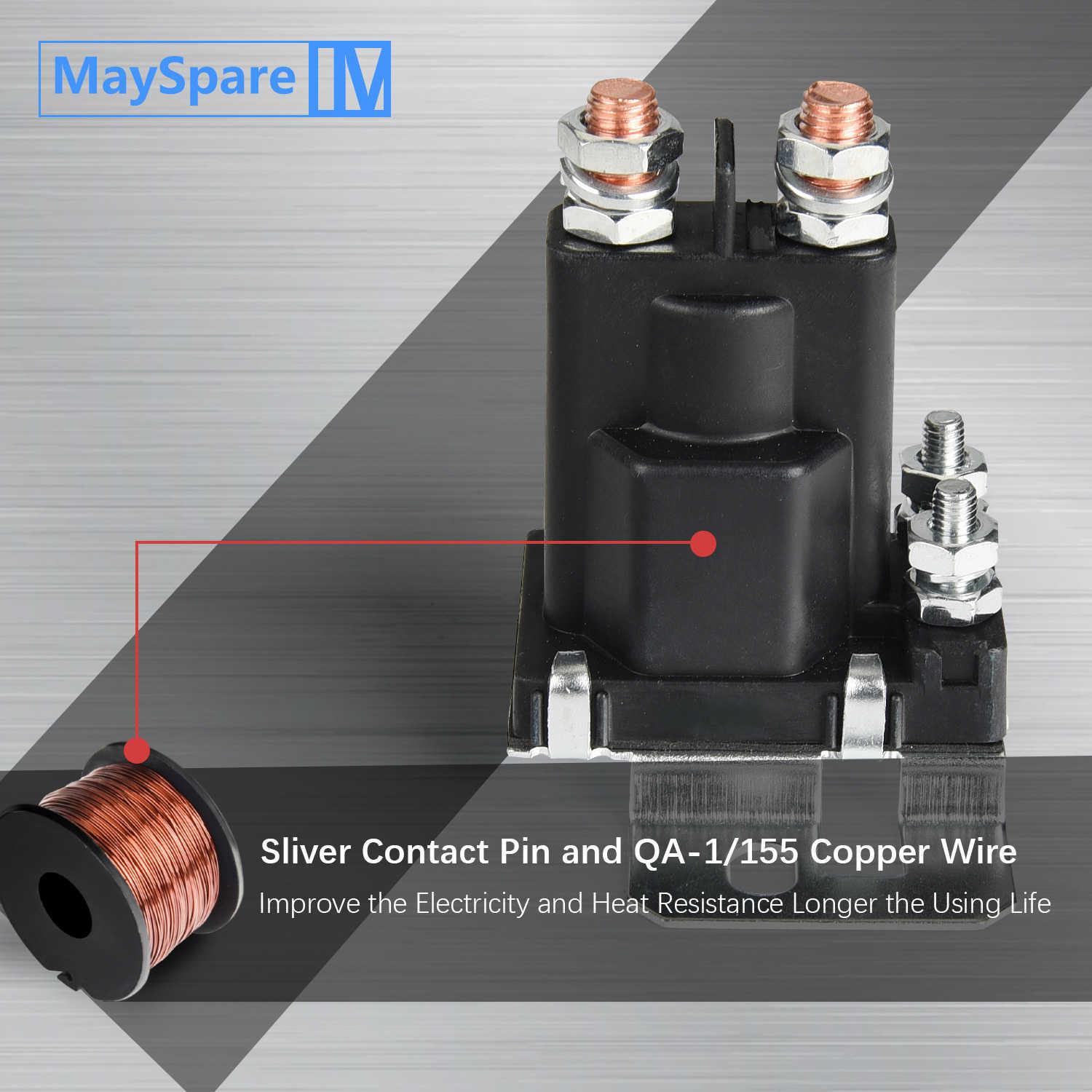

Good electrical and heat resistance long service life
Solenoid Relay Battery Isolator interface usage
The battery isolator is made of a black waterproof housing
DUAL ISOLATOR RELAY IS WIDELY USED IN REMOTE CONTROL AUTOMATIC CONTROL MULTI BATTERY SYSTEM FORKLIFT ENGINEERING ETC
12V Continuous Duty Solenoid Relay Battery Isolator
12V Continuous Duty Solenoid Relay Multi angle display
12v battery isolator specification table
Good electrical and heat resistance long service life
Solenoid Relay Battery Isolator interface usage
The battery isolator is made of a black waterproof housing
DUAL ISOLATOR RELAY IS WIDELY USED IN REMOTE CONTROL AUTOMATIC CONTROL MULTI BATTERY SYSTEM FORKLIFT ENGINEERING ETC

80-Amp Relay 12V Continuous Duty Solenoid Relay Battery Isolator and Relay

SKU: XR-2123
Availability: In Stock
$17.50
$17.50
Subtotal: $17.50
Ask An Expert
10 customers are viewing this product
  • mayspare
Free Shipping

Worldwide Free Shipping (Ordinary Delivery)

Orders over 500$ Fast Express Free

Description
Description
x

Concerning this item

  • Voltage: 12VDC
  • Mix Release (VDC):0~2.4-7.2
  • This Double Batteries Isolator Control On/Off Switch offers continuous amps of 80 and surge max amps of 500 at 12VDC, with a lifespan of 100,000 mechanical cycles. It is equipped with attaching hardware, copper contacts with sliver pins, and is normally open.
  • This device can manage a Max Switching Current of 500A at 5ms and a Max Switching Power of 2000W.
  • With a usage rate of 30 operations per minute, the electrical unit can be expected to function for approximately 100,000 operations before needing replacement.
  • Note that this equipment necessitates a consistent voltage input and can function uninterrupted for approximately four to five hours.
  • You'll find in the kit four large 100AMP terminals linked to the load and four smaller terminals attached to the original power source, plus four insulated red caps.

    Product Description

    Replace

    • White Rodgers 120-105751 120-105751-6 120-901S1 120-107112

    Characteristic

    • Heavy Duty: Featuring sliver contact pins and QA-1/155 copper wire for the coil, this design reduces power loss and extends the lifespan of the product.
    • Water-Resistant: The solenoid is well-protected against harsh environments thanks to the black plastic shell and the potted coil interiors.
    • Dustproof: Your solenoid is well-protected from dust, dirt, sand, and other harmful substances due to the tight seals and firmly enclosed design.
    • Replacement: 100% OEM match and direct replacement, ensuring compatibility with your existing equipment. It is recommended to thoroughly inspect the solenoid relay over a year to ensure it meets your expectations.
